Decking Calculator - Decking Calculator Tool

1. What is Decking Calculator?

Definition: This calculator estimates the number of decking boards, fasteners (screws or hidden fasteners), and total cost needed to build a deck based on its dimensions, board size, and material costs.

Purpose: It is used in construction and DIY projects to plan decking projects, ensuring accurate material estimation and cost calculation for decks on patios, gardens, or outdoor spaces.

2. Importance of Decking Calculation

Calculating decking requirements is crucial for:

• Material Estimation: Determining the exact number of boards and fasteners to avoid over- or under-purchasing.
• Cost Planning: Estimating the total cost of the project to stay within budget.
• Project Efficiency: Ensuring the deck is built with minimal waste and sufficient materials for a durable finish.

3. Using the Calculator

Example 1 (Screws, Same Units): Calculate the decking requirements:

• Deck Length: \( L_d = 20 \, \text{ft} \);
• Deck Width: \( W_d = 13 \, \text{ft} \);

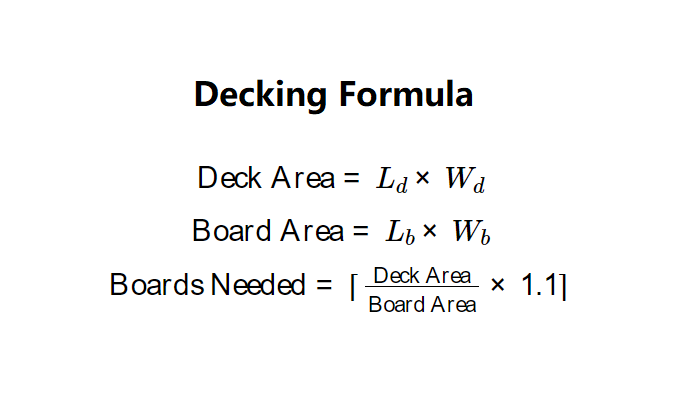

• Deck Area: \( L_d \times W_d = 20 \times 13 = 260 \, \text{ft}^2 \);
• Board Length: \( L_b = 8 \, \text{ft} \);
• Board Width: \( W_b = 6 \, \text{in} \);
• Convert \( W_b \): \( W_b = 6 / 12 = 0.5 \, \text{ft} \);
• Board Area: \( L_b \times W_b = 8 \times 0.5 = 4 \, \text{ft}^2 \);
• Boards Needed: \( \lceil \frac{260}{4} \times 1.1 \rceil = \lceil 71.5 \rceil = 72 \);
• Screws Needed: \( \frac{7}{2} \times 260 = 910 \);
• Selected Screws Pack: 1000 ($98);
• Cost per Board: \( C_b = 7 \, \$ \);
• Boards Cost: \( 72 \times 7 = 504 \, \$ \);
• Total Cost: \( 504 + 98 = 602 \, \$ \);
• Result: \( 72 \, \text{boards} \), \( 910 \, \text{screws} \), Total Cost: \( 602.00 \, \$ \).

Example 2 (Hidden Fasteners, Mixed Units): Calculate the decking requirements:

• Deck Length: \( L_d = 5 \, \text{m} \);
• Convert \( L_d \): \( L_d = 5 \times 3.28084 = 16.4042 \, \text{ft} \);
• Deck Width: \( W_d = 3 \, \text{m} \);
• Convert \( W_d \): \( W_d = 3 \times 3.28084 = 9.84252 \, \text{ft} \);
• Deck Area: \( 16.4042 \times 9.84252 = 161.458 \, \text{ft}^2 \);
• Board Length: \( L_b = 2.5 \, \text{m} \);
• Convert \( L_b \): \( L_b = 2.5 \times 3.28084 = 8.2021 \, \text{ft} \);
• Board Width: \( W_b = 6 \, \text{in} \);
• Convert \( W_b \): \( W_b = 6 / 12 = 0.5 \, \text{ft} \);
• Board Area: \( 8.2021 \times 0.5 = 4.10105 \, \text{ft}^2 \);
• Boards Needed: \( \lceil \frac{161.458}{4.10105} \times 1.1 \rceil = \lceil 43.29 \rceil = 44 \);
• Hidden Fasteners Needed: \( \frac{7}{4} \times 161.458 = 282.5515 \);
• Selected Hidden Pack: 500 ($75);
• Cost per Board: \( C_b = 6 \, \$ \);
• Boards Cost: \( 44 \times 6 = 264 \, \$ \);
• Total Cost: \( 264 + 75 = 339 \, \$ \);
• Result: \( 44 \, \text{boards} \), \( 283 \, \text{hidden fasteners} \), Total Cost: \( 339.00 \, \$ \).

4. Frequently Asked Questions (FAQ)

Q: Why do we add 10% to the number of boards?
A: The 10% waste factor accounts for cutting losses, defects, or errors during installation, ensuring you have enough boards to complete the project.

Q: What is the difference between screws and hidden fasteners?
A: Screws are visible and go through the board into the joist, while hidden fasteners are installed underneath or between boards for a cleaner look. Hidden fasteners typically require fewer units per square foot.

Q: Can this calculator account for irregularly shaped decks?
A: This calculator assumes a rectangular deck. For irregular shapes, you may need to break the deck into rectangular sections and calculate each separately.
